Description

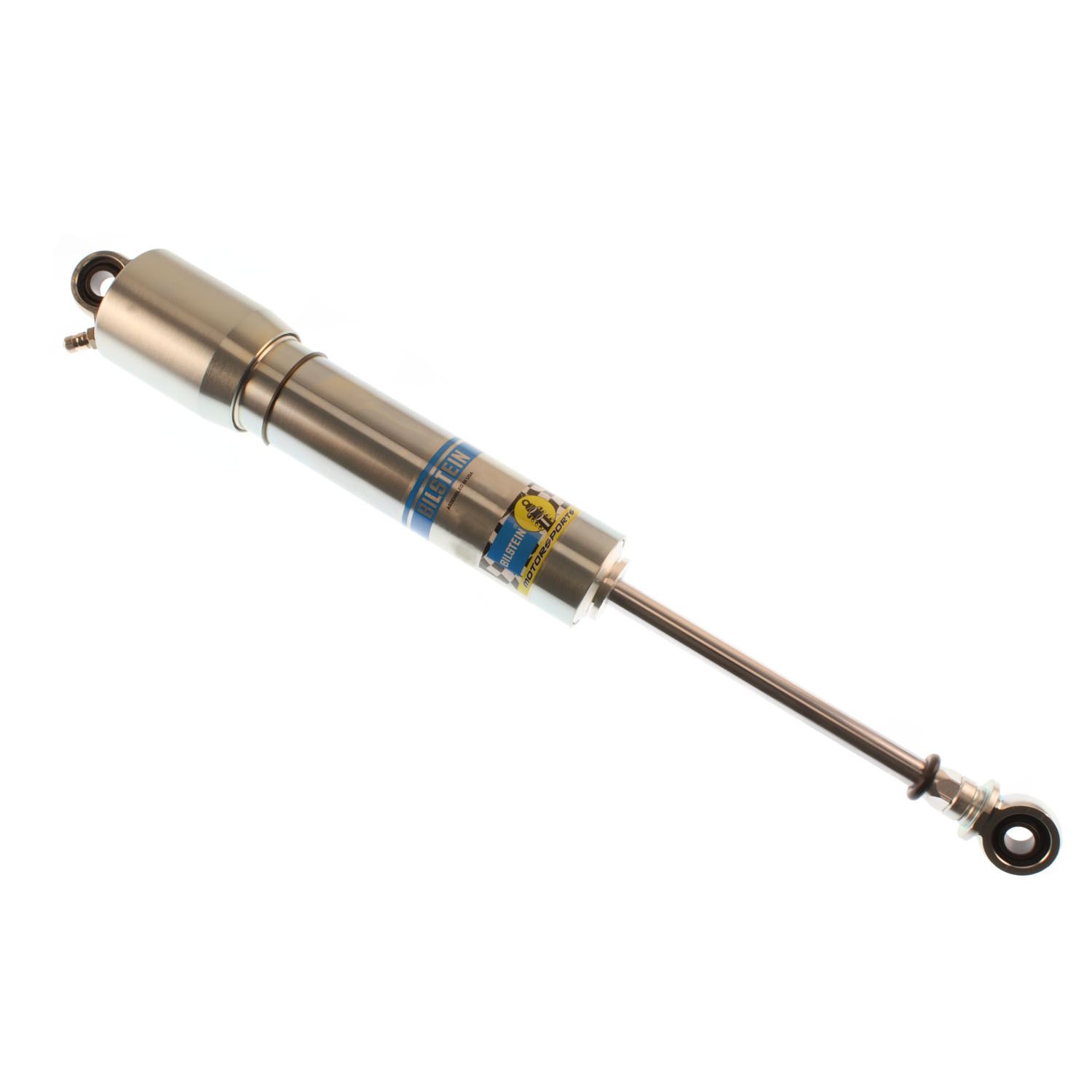

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

Additional Attributes:

GTIN: 00651860731148
Compression @0.52m/s: 765
California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Rebound @0.52m/s: 1015
Internal Design: Monotube
Adjustable Damping: Non-Adjustable
Series: XVS-S Series
Lower Mount Type: 1/2in Heim
Extended Length (MM): 575.5
Body Diameter (ID): 46mm
Collapsed Length (MM): 387.0
Upper Mount Type: 1/2in Heim
Boot Included: No
Piston Type: Digressive
Body Design: Smooth Body (Non-Coilover)
Valving Identifier: 3030
Finish: Zinc Plated
Extended Length (IN): 22.66
Body Material: Steel
Collapsed Length (IN): 15.24
