Description

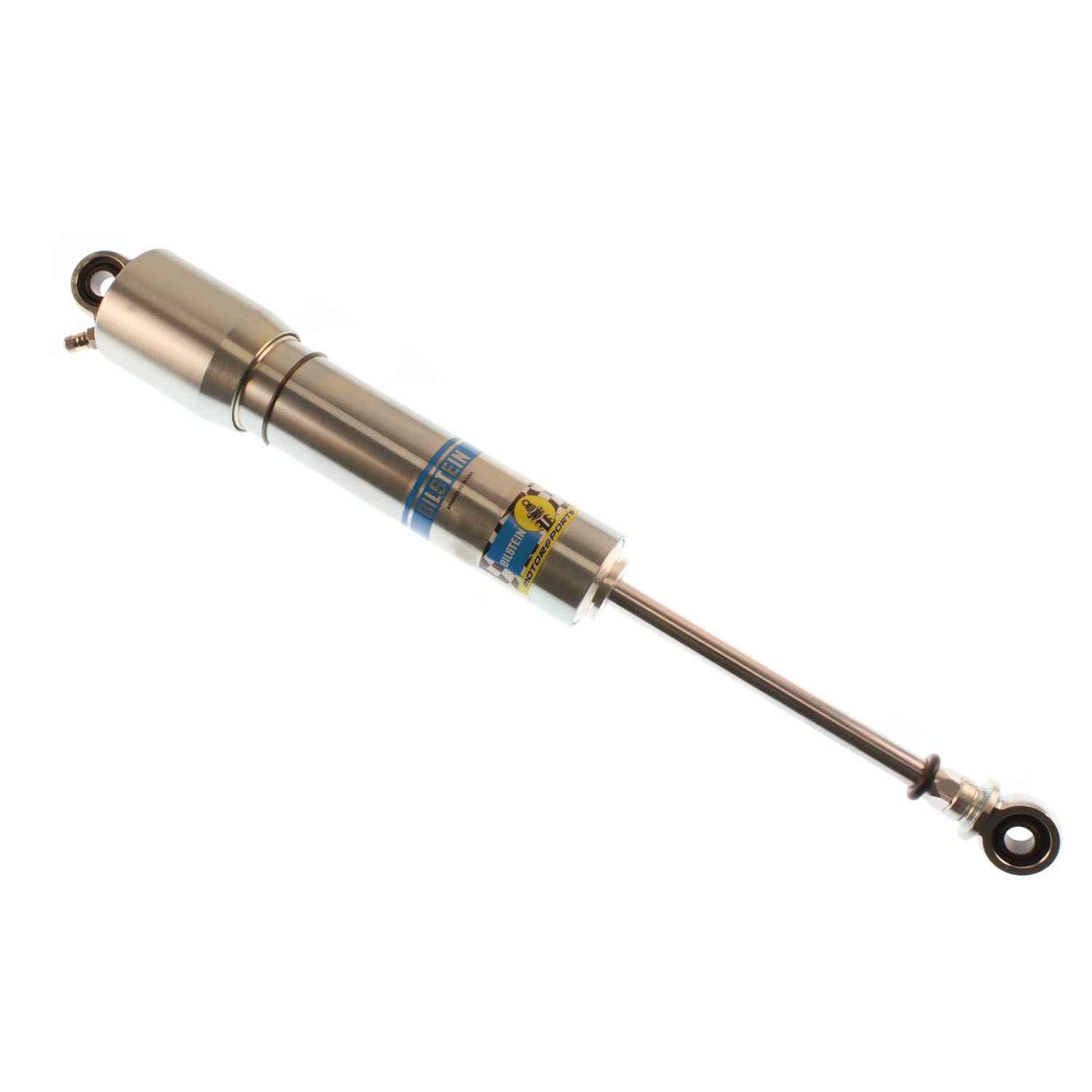

Bilstein XVS-S Series shock absorbers feature a 46mm piston, steel construction, and a threaded body designed for motorsports applications. These shock absorbers are rebuildable via an integrated Schrader valve. The large volume dual zone nitrogen bulb, with optional base valve, allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. XVS-S Series shock absorbers are ideal for racers looking for a steel, rebuildable design with multiple upgrade options and superior performance.

Additional Attributes:

GTIN: 00651860727158
Extended Length (IN): 23.64
Lower Mount Type: 1/2in Heim
Internal Design: Monotube
Collapsed Length (MM): 387.0
Compression @0.52m/s: 1190
Extended Length (MM): 600.5
Finish: Zinc Plated
Boot Included: No
Piston Type: Digressive
Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Collapsed Length (IN): 15.24
Series: XVS-S Series
Body Diameter (ID): 46mm
Upper Mount Type: 1/2in Heim
Valving Identifier: 4040
Rebound @0.52m/s: 1120
California Proposition 65: WARNING: Cancer & Reproductive Harm – www.P65Warnings.ca.gov
Body Material: Steel
